PWHT project

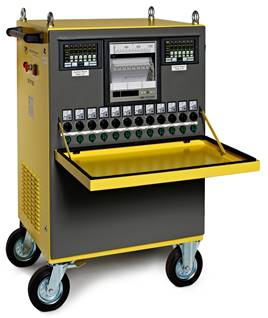

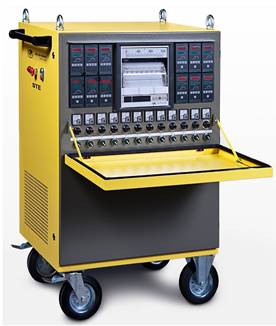

The STANDARD EUROPA series was developed to meet the needs of most customers who want to do preheating and annealing jobs with high precision but without having the requirements of complex program profiles.
These demands led to the heat treatment unit STANDARD EUROPA which unite the familiar WELDOTHERM® quality with a unique price-performance ratio.
By standard 6 or 12 fully automatic program controller TC 80 control the STANDARD EUROPA unit, as an option the TC 1000 touch screen control system is available.

STANDARD EUROPA heat treatment units are equipped with the following safety facilities: Operating temperature monitoring of transformer
core with reinforced - disconnection at over-temperature, a two-stage forced fan cooling of the transformer core in dependence on the temperature with separate power connection, an emergency off pushbutton, 300 mA RCD trip on the secondary voltage coil, individual protection of each circuit on power fuses.
These sturdy heat treatment units have proved themselves all over the world.
These units can also be manufactured according to your specific requirements.

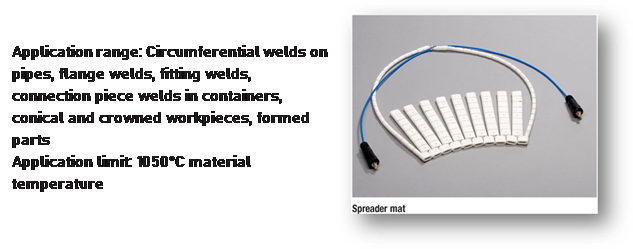

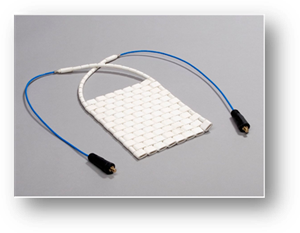

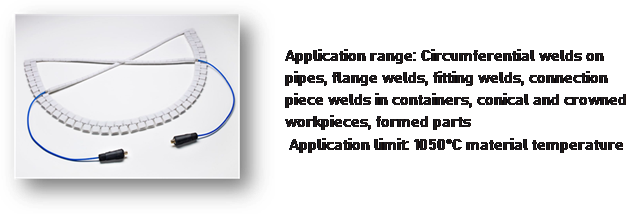

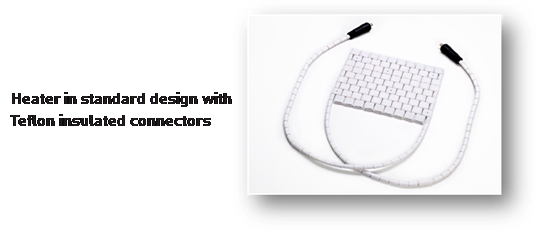

All heaters with ceramic bead insulated connectors.
